Our Ultimate Charge Pipe KIt fits many Volvo P2 S60/V70, S60R/V70R and XC70 models with 5-cylinder turbo engines. It is designed for the performance minded enthusiast who demands more power than the factory intercooler piping can handle.

Volvo's stock charged air pipes are primarily made of plastic that are prone to crack over time, leading to boost leaks and performance loss. The factory plastic pipes also have restrictive, accordion-style flex joints that reduce your engine's horsepower/torque. The Ultimate Volvo P2 Charge Pipe Kit replaces all the factory plastic charged air piping from the turbo outlet to the throttle body inlet with custom made, aluminum piping and silicone hose couplers!

Ultimate Charge Pipe Kit Details:

  • Complete 2.5" 6061 Black Powder Coated all-aluminum intercooler piping (hot & cold side) with a 2.75" throttle transition pipe
  • Compatible with factory/OEM intercoolers or aftermarket "drop-in" intercooler upgrades only
  • Fitment for ALL P2 turbo engine modes: 2.4T, 2.5T, T5 and R
  • Configurable to fit any factory turbo model: Mitsubishi: 13T - 19T, Borg Warner K24 with V-Band outlet or Coupler outlet
  • Configurable to fit -2002 early model (with separate MAP and IAT sensors) or late 2003+ model (combined MAP/IAT sensor) engine variants
  • PIping includes a 1/8" NPT port to facilitate optional water injection installation
  • Utilizes custom designed, 5-layer silicone hoses (4 layers Nomex reinforcement + 5 layers silicone) for durabilty and extreme pressure resistance

Installation PDF: pdf.gif

Vehicle Fitment Guide:

Vehicle Model & Year Turbo Compressor Outlet Style MAP/IAT Style

2001-2002 Volvo S60/V70, XC70 2.4T, T5

2.4T Engine with Mitsubishi TD04L 13T or 14T (select TD04L)

T5 Engine with Mitsubishi TD04HL 13G thru 19T or TD05 20G (select TD04HL)

Separate MAP and IAT sensors

2003-2007 Volvo S60/V70, XC70 2.4T, 2.5T

2003-2004 Volvo S60/V70 T5

2.4T/2.5T Engine with Mitsubishi TD04L 13T or 14T (select TD04L)

T5 Engine with Mitsubishi TD04HL 13G thru 19T or TD05 20G (select TD04HL)

Integrated MAP/IAT sensor

2004-2005 Volvo S60R/V70R

Borg Warner K24, short neck with V-Band flange (select K24 V-Band +$55) Integrated MAP/IAT sensor

2006-2007 Volvo S60R/V70R

2005-2009 Volvo S60 T5

2005-2007 Volvo V70 T5

Borg Warner K24, long neck with silicone coupler (select K24 Coupler) Integrated MAP/IAT sensor

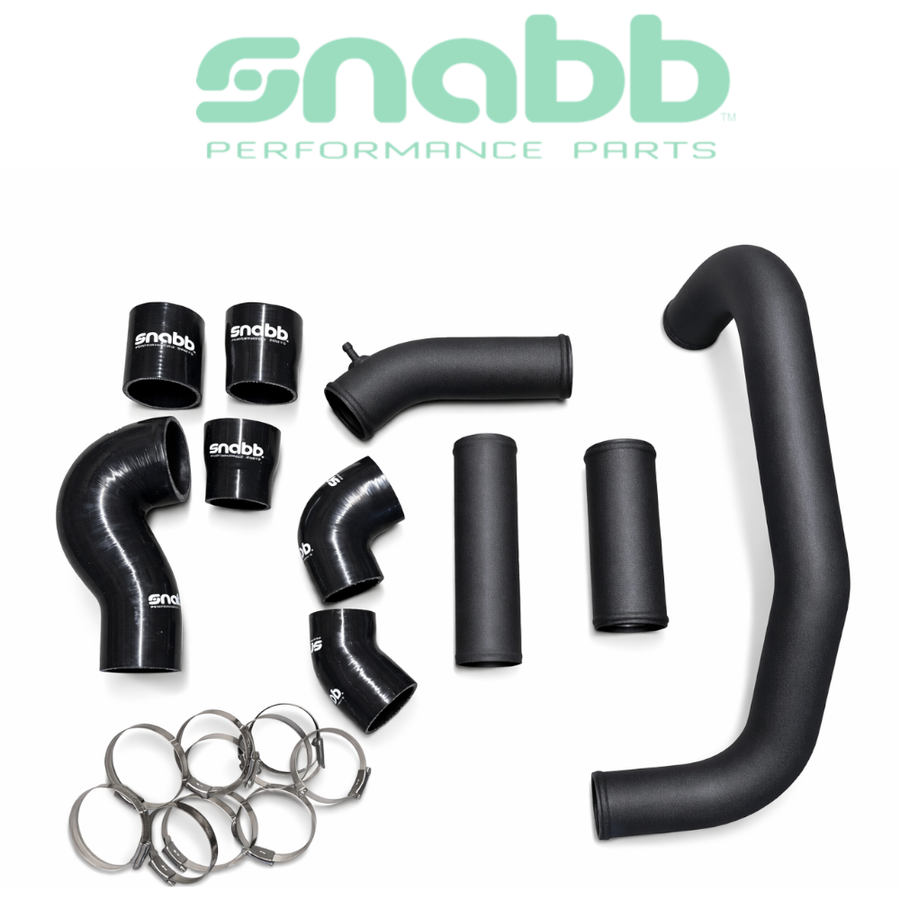

Ultimate Charge Pipe Kit, P2 S60/V70/XC70 Turbo

Snabb

$499.95
Availability:
Extended Backorder for 8-12 weeks
Selected Color is

Out of stock
